Above He Cd Laser cover is removed. You can see blue beam in two side of laser.
The laser beam come through the front side glass.
Above He Cd Laser cover is removed. You can see blue beam in two side of laser.
![hologram laser](/images/hologram_photo (2).jpg) ![Laser with UPS](production/laser_UPS.jpg) |
He-Cd laser for the 2D/3D hologram recording onto photoresist & He-Cd laser with UPS supplier which avoid laser power stop expectedly.
The helium cadmium laser wave length is 441.6nm. So it can record hologram onto photoresist easily. There's other laser also can record hologram image in lab, also is available for embossing hologram production. Laser controller controls the He Cd laser on/off automatic cadmium current supply trigger.
|
![laser ebam](/images/hologram_photo.jpg) ![](/images/hologram_photo (1).jpg) |
He-Cd laser beam. The helium cadmium laser beam is blue light. For interference lithography to be successful, coherence requirements must be met. First, a spatially coherent light source must be used. This is effectively a point light source in combination with a collimating lens. The spatial coherence guarantees a uniform wavefront prior to beam splitting. Second, it is preferred to use a monochromatic or temporally coherent light source.The monochromatic requirement can be lifted if a diffraction grating is used as a beam splitter, since different wavelengths would diffract into different angles but eventually recombine anyway. Even in this case, spatial coherence and normal incidence would still be required. To get more information, please visit link: Affordable Hologram Machinery
![hologram laser](hologram%20equipment%20photoes/optic%20table%20and%20optics.JPG)
All optics including hologram len, shutter, beam splitter, mirror, filter, magnifier, etc are set up on optical table.
|
![hologram optical](production/optics table.jpg) ![hologram optical](production/master shooting table.jpg) |
Vibration Free Optics Table for hologram & He-Cd laser beam. Hologram is carried out on an optical table, which has special vibration reduction systems, since vibrations of as little as a few micrometers can completely wreck a hologram. Optical element includes, beam splitter, mirror, magnifier, pinholes, diffuser plate, cylindrical lens, plano convex lens, etc.
|
![Laser with UPS](production/optics_table.jpg) ![Laser with UPS](production/master shooting room.jpg) |

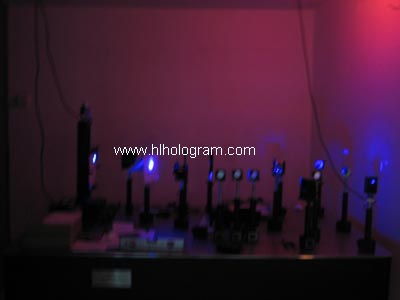

Optics table & holographic master shooting room. Hologram Len and optical on vabration free optics table.
|
![master shooting room](production/master_shooting_room.jpg) ![dark room](production/dark_room.jpg) |
He Cd laser and optical table with optics to record hologram onto photoresist by inferfference. To shoot holographic master in big size foreground, you need on dark room to make mask glass or H1 hologram glass developing room. To get hologram image onto photoresist, we also should develop it.
|
![hologram master shooting room](images\Hologram production process/hologram 2D 3D system.jpg) ![hologram shooting room](images\Hologram production process/hologram 2D 3D lab.jpg) |
New type 2D 3D holographic master shooting table and optics.

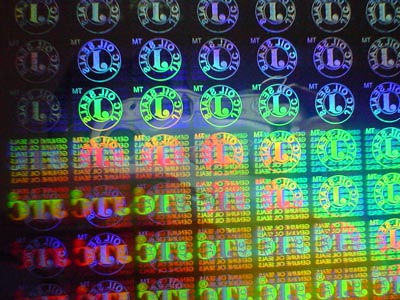

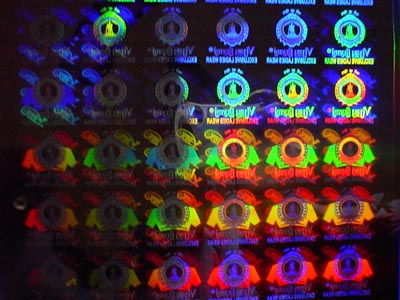

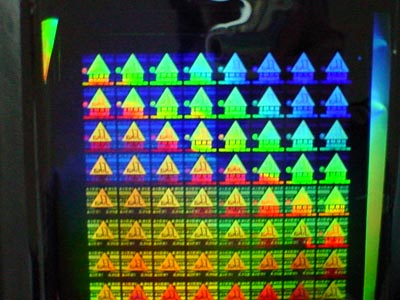

2D/3D holographic master origination photo. 2D/3D Hologram is made up of multiple two dimensional layers with holographic images visually placed one behind another with visual depth to produce an effect of three-dimensional holographic structure. It has very good visual depth between different layers and shininess on first layer. To understand how 2D 3D hologram made, please visit What does 2D 3D Hologram mean and how 2D 3D hologram is made?
Classical type 2D 3D Hologram shooting lab.
|
![master shooting room](images\Hologram production process/Classical type 2D 3D Hologram shooting lab.jpg) ![master shooting room](images\Hologram production process/3D hologram system.jpg) |
Hologram simple 2D 3D system combines classical hologram system.
|
![master shooting room](images\Hologram production process/hologram lab.jpg) ![master shooting room](images\Hologram production process/holograph lab.jpg) |
Classical hologram lab and optics.
|
![master shooting room](images\Hologram production process/holograph system.jpg) ![master shooting room](images\Hologram production process/H1 hologram.jpg) |
H1hologram glass making and hologram H1 glass to image reappearance.
|
![master shooting room](images\Hologram production process/rainbow hologram glass.jpg) ![master shooting room](images\Hologram production process/h1 hologram glass.jpg) |
2D/3D Hologram grating and H1 hologram glass developing.
|
![master shooting room](images\Hologram production process/2D 3D hologram laser.jpg) ![master shooting room](images\Hologram production process/laser.jpg) |
Laser for 2D 3D hologram making.
2D/3D Hologram is made up of multiple two dimensional layers with holographic images visually placed one behind another with visual depth to produce an effect of three-dimensional holographic structure. It has very good visual depth between different layers and shininess on first layer. To understand how 2D 3D hologram made, please visit What does 2D 3D Hologram mean and how 2D 3D hologram is made?
Electronic forming system and electronic forming tank to make nickel holographic master origination
|
![master shooting room](images\Hologram production process/electronic forming tanks.jpg) ![master shooting room](images\Hologram production process/soft tank for hologram.jpg) |
Two set hologram electronic forming tank. One is soft tank, another is hard tank.
|
![master shooting room](images\Hologram production process/soft electronic forming tank.jpg) ![master shooting room](images\Hologram production process/hard electronic forming tank.jpg) |

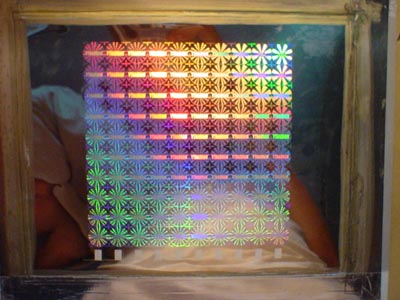

2D/3D holographic master origination photo & Dot-matrix holographic master origination photo. Dot-Matrix holographic label allows implementing unlimited computer controlled and laser beam engraved dots in holographic. This Dot-matrix holographic is the result of designs comprising many tiny dots, where each dot is a separate diffraction grating. They create a beautiful impact of variable images. To understand how dot-matrix hologram made, please visit What does dot-matrix mean and how dot matrix hologram is made?
Hologram origination and hologram operation nickel after electronic forming
|
![Dot-matrix Hologram](/images/hologram origination.jpg) ![2D/3D Hologram master](/images/hologram_origination.jpg) |
2D/3D holographic master origination photo & Dot-matrix holographic master origination photo. The right shim is the copy of origination.
|
![](/images/hologram mold.jpg) ![](/images/master_origination.jpg) |
2D/3D holographic master origination photo & Special master.
Dot matrix Hologram shooting lab.
|
![Dot-matrix Hologram master](/images/master_mold.jpg) ![Dot-matrix Hologram master](/images/dot-matrix_mold_making.jpg) |
Dot-matrix holographic master and dot-matrix system. This old dot-matrix system with circle dots and helium cadmium laser wave length is 441.6nm.
Dot-matrix hologram system with square dot, 1270 dpi, 635 dpi
|
![master shooting room](images\Hologram production process/dot matrix system.jpg) ![master shooting room](images\Hologram production process/dot matrix hologram lab.jpg) |
Dot-matrix Hologramequipment. This old dot-matrix system with square dots and small laser..
|
![master shooting room](images\Hologram production process/dot matrix hologram machine.jpg) ![master shooting room](images\Hologram production process/dot matrix focus.jpg) |
Dot-matrix Hologram system laser and focus optics
|
![master shooting room](images\Hologram production process/dot matrix hologram equipment PC.jpg) ![master shooting room](images\Hologram production process/dot matrix hologram system platform.jpg) |
Dot-matrix Hologram system PC to control process and laser engraving platform
|
![master shooting room](images\Hologram production process/dot matrix hologram len.jpg) ![master shooting room](images\Hologram production process/hologram glass.jpg) |
Dot-matrix Hologram system lens and hologram glass
|
![master shooting room](images\Hologram production process/dot matrix beam splitter.jpg) ![master shooting room](images\Hologram production process/hologram dot matrix beam splitter.jpg) |
Dot-matrix Hologram system PC to control process and laser engraving platform
![hologram laser](hologram%20equipment%20photoes/Dot%20matrix%20hologram%20maker.JPG)
Hologram Dot-matrix system
|
![Hologram Embossing](/images/embossering_cylinder.jpg) ![Hologram Embossing](production/embosser_cylinder.jpg) |
Hologram embossing and hologram embosser sylinder
|
Hologram Pictures
|
![Hologram](images\Hologram production process\hologram product photoes\hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\Valid Hologram.jpg) |

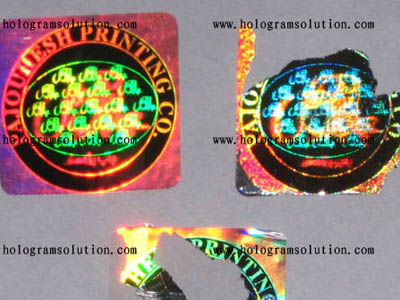

Holographic sticker, instant hologram smaple in stock.
|
![Hologram](images\Hologram production process\hologram product photoes\warranty hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\secure hologram sticker.jpg) |
Holographic sticker, instant hologram smaple in stock.
|
![Hologram](images\Hologram production process\hologram product photoes\Hologram sticker.jpg) ![Hologram](images\Hologram production process\hologram product photoes\dotmatrix hologram.jpg) |
Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram
|
![Hologram](images\Hologram production process\hologram product photoes\Authentication hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\Holograms stickers.jpg) |
Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram
|
![Hologram](images\Hologram production process\hologram product photoes\hologram original.jpg) ![Hologram](images\Hologram production process\hologram product photoes\matrix hologram sticker.jpg) |
2D/3D Hologram photo & Dot-matrix Hologram photo
|
![Hologram](images\Hologram production process\hologram product photoes\VOID hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\tamper proof hologram.jpg) |
Tamper proof hologram and VOID hologram
|
![Hologram](images\Hologram production process\hologram product photoes\honeycomb hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\security hologram.jpg) |
2D/3D Hologram, honeycomb & Security Holographic Sticker
|
![Hologram](images\Hologram production process\hologram product photoes\holograph label.jpg) ![Hologram](images\Hologram production process\hologram product photoes\holographic.jpg) |
2D/3D Hologram, in stock, instant hologram
|
![Hologram](images\Hologram production process\hologram product photoes\Authentic Hologram sticker.jpg) ![Hologram](images\Hologram production process\hologram product photoes\holograph sticker.jpg) |
Hologram, in stock, instant hologram
|
![Hologram](images\Hologram production process\hologram product photoes\holograms label.jpg) ![Hologram](images\Hologram production process\hologram product photoes\holograms.jpg) |
Hologram, in stock, instant hologram. Tamper evident hologram
|
![Hologram](images\Hologram production process\hologram product photoes\hologram pouch.jpg) ![Hologram](images\Hologram production process\hologram product photoes\hologram overlay.jpg) |
Hologram pouch and ID hologram in stock
|
![Hologram](images\Hologram production process\hologram product photoes\holographic pouch.jpg) ![Hologram](images\Hologram production process\hologram product photoes\ID hologram.jpg) |
Hologram pouch and ID hologram in stock
|
![Hologram](images\Hologram production process\hologram product photoes\Authentication holograms.jpg) ![Hologram](images\Hologram production process\hologram product photoes\QC passed hologram.jpg) |
Dot-matrix Hologram with animated movement
|
![Hologram](images\Hologram production process\hologram product photoes\holography sticker.jpg) ![Hologram](images\Hologram production process\hologram product photoes\holography.jpg) |
2D/3D Hologram photo & Dot-matrix Hologram photo
|
![Hologram](images\Hologram production process\hologram product photoes\Hologram picture.jpg) |
Dot-matrix Hologram with animated movement
|
![Hologram](images\Hologram production process\hologram product photoes\SECURE Hologram.jpg) ![Hologram](images\Hologram production process\hologram product photoes\hologram shape.jpg) |
Hologram cutting
|
![](/images/hologram mold.jpg) ![](/images/master_origination.jpg) |
2D/3D holographic master origination photo & Special master
|
|
|
